Gel Battery

Voltage: 2V, 6V, 12V
Capacity: 2V: 100AH ~ 3000AH; 6V, 12V: 28AH ~250AH
Charge voltage: cycle use: 2.30~2.35V/cell; float use: 2.25~2.30V/cell
Charge current: The initial current less then 0.3CA

Characteristics

• Neata GEL battery uses the sealed GEL technology.

• Designed for high reliability, maintenance-free power for renewable energy applications.

• Depending on the advantage GEL technology, optimum grid and plate design.

• Nonspillable

Applications

• Water pumping

• Cathodic protection

• Communications

• Solar & wind system

• Electric powered vehicles

• Golf cars

• Commercial deep cycle applications

• Power plant

• UPS systems

Project details

Type	Voltage (V)	10h Rate Capacity (Ah)	Internal Resistance (mΩ)	Length		Width		Height		Total Height		Weight		Terminal
Type	Voltage (V)	10h Rate Capacity (Ah)	Internal Resistance (mΩ)	mm	in	mm	in	mm	in	mm	in	Kg	Lb	Type	Positon
NTG12-18	12	18	16	181	7.13	77	3.03	167	6.57	167	6.57	5	11.02	F3	D
NTG12-24	12	24	20	166	6.54	175	6.89	125	4.92	125	4.92	7.4	16.31	F4	D
NTG12-28	12	28	15	166	6.54	175	6.89	125	4.92	125	4.92	8	17.64	F4	D
NTG12-28	12	28	14	165	165	125	4.92	175	6.89	175	6.89	9	19.84	F4	D
NTG6-100	6	100	3.3	194	194	170	6.7	205	8.1	205	8.1	15.8	34.83	F9	A
NTG6-190	6	190	2.2	243	243	187	7.4	253	10	276	10.9	31	68.34	F9	A
NTG12-33	12	33	11	195	195	130	5.1	155	8.9	155	8.9	10.2	22.49	F5	D
NTG12-40	12	40	9.5	197	197	165	6.5	170	6.7	170	6.7	12.5	27.56	F6	D
NTG12-55	12	55	7	229	229	138	5.4	208	8.2	208	8.2	17	37.48	F6	D
NTG12-65	12	65	6.6	350	350	167	6.6	179	7	179	7	21	46.3	F7	D
NTG12-60	12	60	7.7	350	350	167	6.6	179	7	179	7	22	48.5	F7/F13	D
NTG12-70	12	70	7	260	260	168	6.6	211	8.3	211	8.3	24	52.91	F7	D
NTG12-80	12	80	6.5	306	306	166	6.65	211	8.3	211	8.3	27.5	60.63	F7	D
NTG12-90	12	90	5.8	306	306	169	6.65	211	8.3	211	8.3	28.5	62.83	F8/F14	D
NTG12-90H	12	90	5.4	330	330	171	6.7	214	8.4	214	8.4	31	68.34	F8/F14	D
NTG12-100	12	100	5	330	330	171	6.7	214	8.4	214	8.4	32	70.55	F8/F14	D
NTG12-110	12	110	5.2	330	330	171	6.7	225	8.86	225	8.86	33.5	73.85	F8/F15	D
NTG12-120	12	120	4.4	409	409	176	6.9	225	8.9	225	8.9	36.5	80.47	F9	D
NTG12-134	12	134	4.2	342	342	172	6.8	280	11	280	11	42.5	93.7	F15	D
NTG12-150	12	150	3.9	485	485	172	6.8	240	9.4	240	9.4	44	97	F9/F15	D
NTG12-180	12	180	3.6	494	494	206	8.1	209	8.2	209	8.2	55	121.25	F13	F
NTG12-160	12	160	3.2	530	530	207	8.15	214	8.43	214	8.43	53	116.84	F9	D

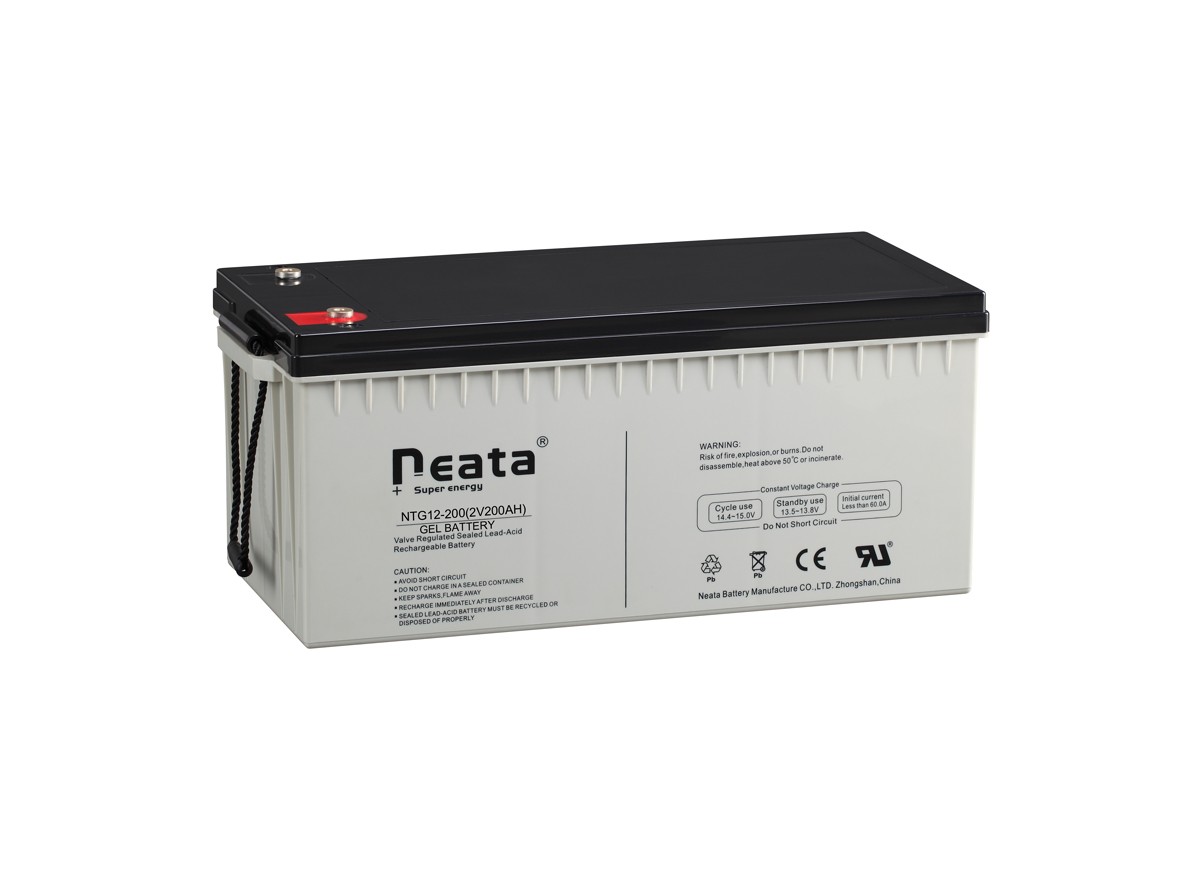

NTG12-200	12	200	3.3	522	522	238	9.4	218	8.6	218	8.6	66	145.31	F10	F
NTG12-250	12	250	7.9	521	521	269	10.6	220	8.7	220	8.7	75	165.35	F10	F
NTG12-50FT	12	50	7.2	277	277	106	4.17	221	8.7	221	8.7	17	37.48	F6	D
NTG12-100FT	12	100	5.4	506	506	110	4.3	224	8.8	239	9.4	31	68.34	F8/F14	D
NTG12-150FT	12	150	4	551	551	110	4.3	287	11.3	287	11.3	47	103.62	F13	F
NTG12-180FT	12	180	3	546	546	125	4.9	317	12.5	323	12.7	57	125.66	F13	F
NTG2-100	2	100	0.9	171	171	72	2.8	206	8.1	209	8.2	6	13.23	F7/F14	A
NTG2-150	2	150	0.7	171	171	102	4	206	8.1	211	8.3	8.5	18.74	F7/F14	A
NTG2-200	2	200	0.95	173	173	109	4.3	330	13	364	14.3	14	30.86	F8/F15	B
NTG2-300	2	300	0.8	171	171	151	5.9	330	13	364	14.3	19.5	42.99	F8/F15	I
NTG2-400	2	400	0.65	210	210	176	6.9	330	13	367	14.4	26.5	58.42	F8/F15	I
NTG2-500	2	500	0.55	241	241	171	6.8	330	13	365	14.4	31.5	69.45	F9/F15	I
NTG2-600	2	600	0.5	302	302	175	6.9	330	13	367	14.4	38	83.8	F9/F15	I
NTG2-800	2	800	0.4	410	410	175	6.9	330	13	367	14.4	53.5	117.95	F9/F15	J
NTG2-1000	2	1000	0.3	475	475	175	6.9	330	13	367	14.4	64	141.1	F10/F15	J
NTG2-1500	2	1500	0.22	400	400	350	13.8	345	13.6	382	15	97	213.85	F10/F16	J
NTG2-2000	2	2000	0.2	490	490	350	13.8	345	13.6	382	15	130	286.6	F10/F16	J
NTG2-3000	2	3000	0.13	710	710	350	13.8	345	13.6	382	15	198	436.52	F10/F16	K
